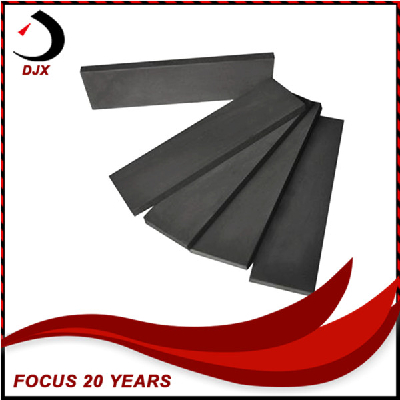

High Thermal Conductivity Synthetic Graphite Sheet
Product Description
Graphite Sheet is a kind of totally new thermal & radiating material, heat conducting evenly along two directions, shielding with heat and component while improving the performance of your electronic products.
Product Features
Adhesive-backed available
Pre-cut parts or sheets form
Laminated with metal/plastic to meet mechanical and electrical demands
High thermal performance
Eliminate hot spots area design
Flexible enough to comfort to kinds of surfaces
Typical applications
LED lighting/Heat sink
Payment
T/T,L/C,Western Union payments
Packaging & Delivery
Package details: Wooden case/pallet packing, interspace with filling materials in order to avoid shaking.
Delivery Detail:According to order quantity of graphite block
Contact
QQ：3163749594
Tel: 8617719060871
0086-375-2123777
Wechat： 8617719060871
- Place of Origin: China
- Brand Name: Graphite Products
- Model Number: DJX-GS
Property
| Synthetic Graphite | Unit | Tolerance | |||
| Thickness | 0.017 | 0.025 | 0.04 | mm | ±10% |
| Thermal Conductivity(X,Y axis) | 1600-1900 | 1500-1700 | 1100-1300 | W/m.k | - |
| Thermal conductivity(Z axis) | 15-20 | 15-20 | 15-20 | W/m.k | - |
| Thermal Diffusion | 9.09-9.94 | 8.40-8.96 | 7.62-9.80 | M2/s | - |
| Hardness | 85 | 85 | 85 | Shore A | ±10% |
| Density | 1.5-2.1 | g/cm3 | - | ||
| Specific Heat Capacity(50℃) | 0.85 | J/kg.K | - | ||
| Working Temperature | -40-400 | ℃ | - | ||
| Bend Test(R5/180°) | >10000 | Times | - | ||
| Tensile Strength | 650 | Mpa | - | ||
| Environmental Suitability | Halogen/ROHS | / | |||
| Flame Retardant | V0 | UL94 | |||
Note:1. The size and shape is according to your requirement.
2.Sample is available for you to check our quality.
