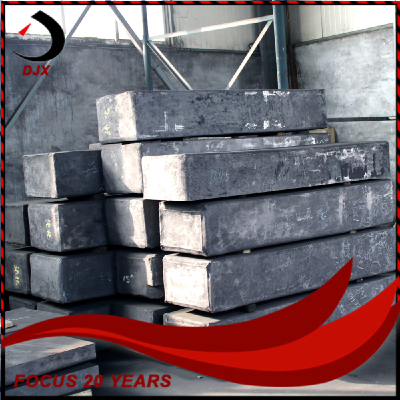

China Made Refractory High Quality Molded Graphite
Product Description
All of the high pure graphite has a unique performance to meet your high demand. Molded graphite has a wide range of properties such as mechanical strength, wear resistance, density, hardness, electrical conductivity, and can be further improved by impregnating resin or metal.
Due to the fine grain size and the homogeneity of the internal structure, the graphite can be used instead of the isostatic graphite if the size is not considered.
Product Features
Good processability
Thermal stability
Low expansion rate
Good chemical resistance
Good electrical conductivity and thermal conductivity
Payment
T/T,L/C,Western Union payments
Packaging & Delivery
Package details: Wooden case/pallet packing, interspace with filling materials in order to avoid shaking.
Delivery Detail:According to order quantity of graphite block
Contact
QQ：3163749594
Tel: 8617719060871
0086-375-2123777
Wechat： 8617719060871
- Place of Origin: China
- Brand Name: Graphite Products
- Model Number: DJX-GB
Specifications of Graphite Block
| No. | Bulk Density | Grain Size | Specific Resistance | Thermal Conductivity | Shore Hardness | Flexural Strength | Compressive Strength | Elastic Modulus | Porosity |
| g/cm3 | μm | μΩm | W/m.k | HSD | Mpa | Mpa | Gpa | % | |
| DCM-3 | 1.68 | 15 | 9/13 | 95 | 35 | 20 | 45 | 8 | 18 |
| DCM-4 | 1.72 | 25 | 10/13 | 100 | 40 | 30 | 65 | 9.2 | 17 |
| DCM-5 | 1.80 | 15 | 8/10 | 125 | 48 | 35 | 70 | 9.5 | 13 |
| DCM-5S | 1.85 | 15 | 8/10 | 130 | 55 | 40 | 80 | 10 | 12 |
| DCM-6 | 1.81 | 12 | 11/14 | 120 | 60 | 45 | 90 | 10.5 | 12 |
| DCM-6S | 1.86 | 12 | 10/13 | 125 | 65 | 48 | 100 | 11 | 11 |
| DCM-7 | 1.83 | 8 | 11/14 | 105 | 67 | 50 | 110 | 11 | 12 |
| DCM-8 | 1.86 | 6 | 10/14 | 110 | 72 | 55 | 120 | 12 | 12 |
| DCM-9 | 1.90 | 2/4 | 10/14 | 110 | 75 | 60 | 125 | 12 | 10 |
| DCM-10 | 1.75 | 2/4 | 12/16 | 105 | 50 | 38 | 75 | 10 | 12 |
| Molded Graphite Block | ||
| Round Block | Square Block | |
| Φ55*120 | Φ300*200*120 | |
| Φ 65*120 | Φ300*250*120 | |
| Φ65*135 | Φ330*260*160 | |
| Φ70*135 | Φ345*345*165 | |
| Φ75*120 | Φ350*270*150 | |
| Φ105*160 | Φ370*280*150 | |
| Φ110*160 | Φ420*310*140 | |
| Φ110*255 | Φ420*310*150 | |
| Φ145*260 | Φ420*310*160 | |
| Φ160*255 | Φ420*310*180 | |
| Φ180*255 | Φ420*310*200 | |
| Φ190*410 | Φ400*400*300 | |
| Φ225*260 | Φ500*300*200 | |
| Φ240*410 | Φ650*210*150 | |
| Φ300*255 | Φ650*500*200 | |
Note:Specical sizes are available according to customer's requirement
